PLENAFORM® Plenum Baffles

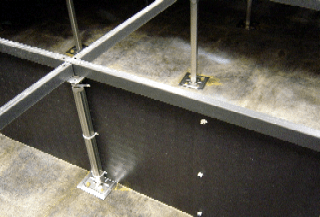

PLENAFORM® is a flexible, snap together, air flow baffle system which directs or diverts air flow under raised floors.
The PlenaForm® Baffle System is a flexible, snap together, air flow baffle system which helps to solve dynamic thermal imbalances in data centers. Installation is easy, and the system does not require electricity to operate. It is a holistic tool to direct or block airflow very simply and inexpensively. And if necessary, relocating is easy: just release the cable ties.
Benefits
- Overcome challenges in data center cooling
- Reduce energy consumption and operating costs
- Keep employees more comfortable
Specifications
- Baffle Dimension: 24″ x 48″w x .040″d
- Baffle Weight: Approximately 1.75 lbs. each
- Baffles are scored in 1″ horizontal increments and 1-1/2″ vertical increments
- Baffles are die cut from flame retardant polypropylene compound that is inert,non-conductive, and UL 94 V-O.
- Color: black
Ships in packs of 12 with cable ties and rivets included (custom packs also available)
- On-Site Configurable (Width and Height)
- Fits ANY Raised Floor Pedestal
- RoHS and WEEE Compliant – an energy saving and thermal tuning tool
