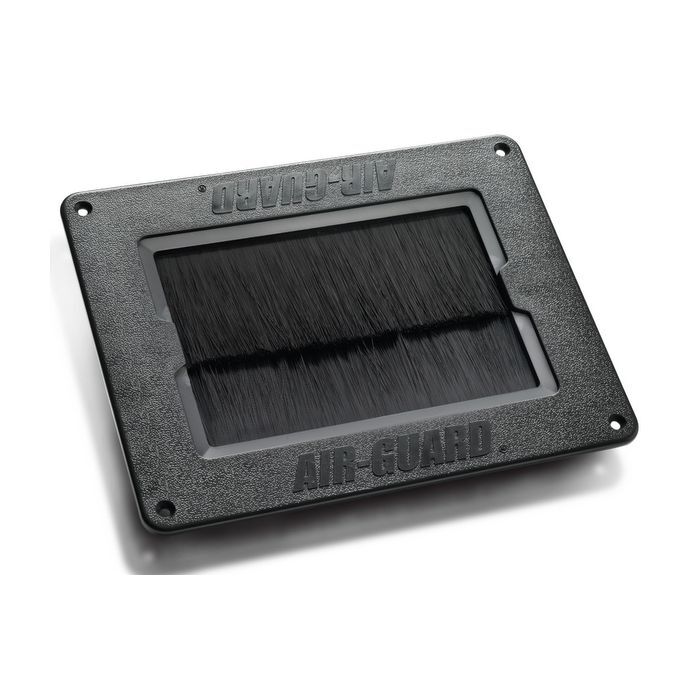

Air-Guard® #116-800-015 Extreme Gasket System
The Air-Guard Extreme is a heavy duty double layer gasket system, incorporating a flexible EDPM synthetic “rubber” gasket material along with Air-Guard brush technology to deliver airtight seals around cables, helping to eliminate air leakage and control air bypass in under-floor air installations.
Designed to seal openings in raised floor cutouts prior to installation of communications or power cabling. Both the Air-Guard Extreme and its integrated safety cover are manufactured from flame retardant ABS polycarbonate material that provides a finished look on all raised floor panels. Solid construction and the textured surface compliment all floor coverings.
The included hardware and integrated mounting trim saves time and labor, eliminating the need to cut individual trim fittings, making the Air-Guard Extreme floor grommet easy to install and integrate with the access floor static dissipative system.
Included with each product are installation instructions and mounting hardware.
Dimensions:
Cutout – 9.0”x 6.5”
Usable Area – 7.25”x 4.75”
Overall – 11.0”x 8.25”
