    Air-Guard® 5" Round #116-800-050-SM

    Air-Guard®

    MSRP:
    Now: $44.00
    (You save )
    (No reviews yet) Write a Review
    SKU:
    116-800-050-SM
    Availability:
    In Stock
    Weight:
    1.00 LBS
    Shipping:
    $19.60 (Fixed Shipping Cost)

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Overview
    • Reviews

    Product Description

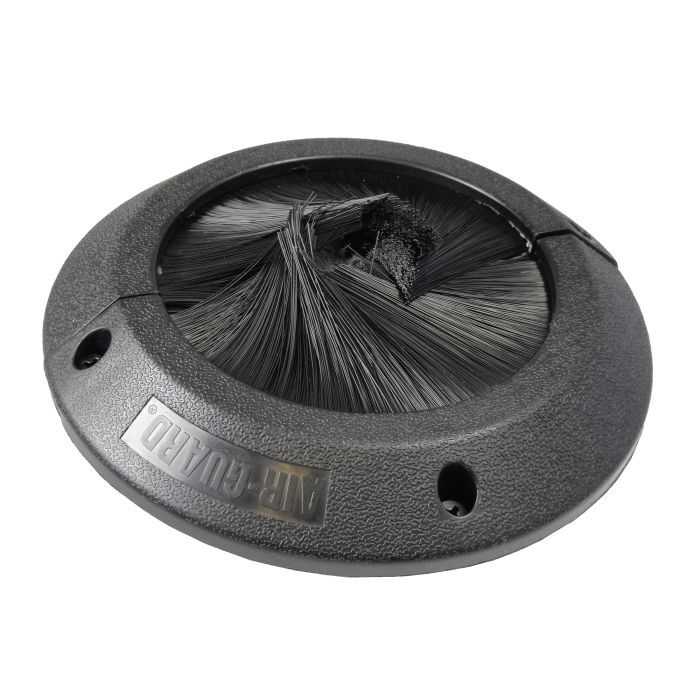

    Air-Guard® #116-800-050 5" Round

    Limit Airflow Bypass and Under Floor Contamination with our newest model, the 5" Round Floor Grommet.

    The Air-Guard 5" Round is the superior choice for sealing smaller cable cutouts in a data centers' raised floor.  The perfect solution for both new and existing cable cutouts; the Air-Guard 5" Round is a data center's best option to limit airflow bypass and under floor contamination for installations of smaller bundles of power and or data cables.

    • Overlapping Brush Technology
    • Constructed of flame retardant and heat resistant materials
    • Attractive textured, impact and slip resistant surface
    • Low profile lip limits tripping hazard
    • EPDM "Rubber" Gasket Membrane
    • Two piece assembly designed to retrofit around existing cables
    • ABS polycarbonate construction with a UL94 VO rating
    • Installation is simple and easy
    • Includes 4 self threading screws

    Double Layer Technology

    The Air-Guard 5” Round utilizes a heavy duty double layer brushed grommet rubber gasket system, incorporating a flexible EPDM synthetic "rubber" gasket material along with Air-Guard brush technology to deliver airtight seals around cables, helping to eliminate air leakage and control air bypass in under-floor air installations.

    Together the brushes and rubber gasket work in tandem to hold cables in the center of the cutout while limiting the passage of contaminants under the floor.  The dual stage sealing system provides a superior seal to prevent airflow bypass, reduce energy consumption, and aid in the implementation of hot/cold aisle containment or floor configurations.

    Air-Guard Cable Seals support:

    • Higher equipment cabinet densities
    • Increase cooling efficiencies and capacity
    • Improve static air pressure under the raised floor
    • Prevention of electrical equipment from overheating
    • Data center best practice
    • Hot/cold aisle floor configuration
    • Hot/cold aisle containment system
    • NFPA 75 Standard for protecting cable openings in floors
    • NFPA 75 Standard for cable openings and barrier penetrations
    • NFPA 75 Standard minimizing the entrance of debris beneath a raised floor

    Dimensions:

    • Cutout Diameter – 5”
    • Outer Diameter – 6-1/2”
    • Inner Diameter – 4-1/2”
    • Inset Depth – 1-1/2”
    • Raised Height – 1/4”
    • Usable Area – 12.5”
