Product Description

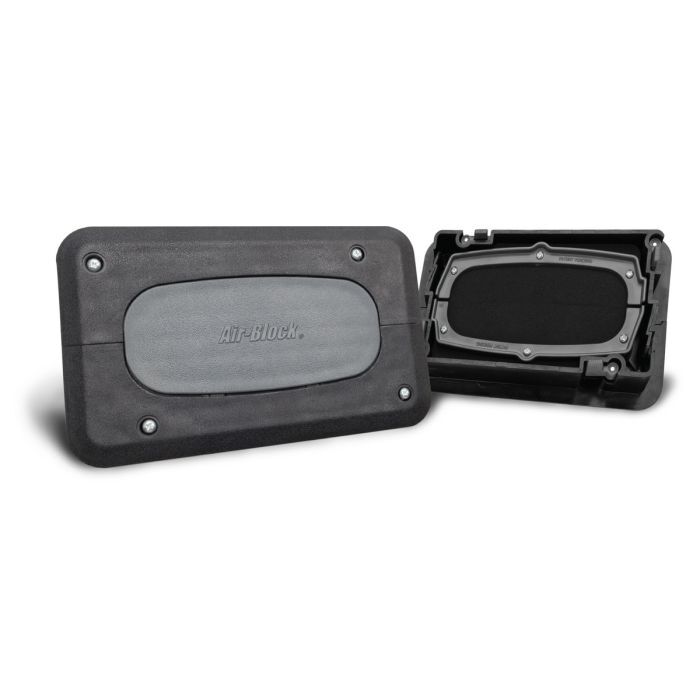

Air-Block® #116-800-070 Rectangular
The Air-Block is a heavy duty split EDPM rubber gasket cable grommet system for sealing around cable openings going through access flooring. Housed in flame retardant and inherently anti-static ABS polycarbonate, featuring EDPM rubber gasket technology, each Air-Block offers multiple cable knockouts configurations to control bypass air by forming an airtight seal around cables, helping to eliminate air leakage in under-floor air installations.
The two-piece design removes the need for an outer housing ring, and facilitates quick and easy installation of the grommet. The Air-Block mechanically locks into a access floor panel hole via screw toggles located on the top surface of the grommet. Exposed screws are finished with a cap plug that matches the grommet surface.
Grommet splits into two sections for quick and easy installation, no fishing cables through the grommet.
Included with each product are installation instructions and mounting hardware.
Dimensions:
External—8.875”x 5.375”
Cutout—7.875”x 4.375”
Knock-Outs—(5) 0.5” (expandable to 0.75”)
Rectangular Air-Block -
Dimensions: 8.875" X 5.375"
Knock-outs: (5) 1/2" (expandable to 3/4")
